Valve Type	CAST IRON BALL VALVE - SE / FLANGED
Design Std	BS 5159
	Screwed	15 DN to 50 DN [ ½” to 2”] - SP
	Flanged	25 DN to 250 DN [ 1” to 10”] - 3P ≤ 150, 2P ≥ 150
Body	CI - IS 210 Gr. FG 200 / ASTM A 126 Gr. B
Trim	AISI 410 / 304 / 316
Seat	PTFE
Design Features	Full Bore, Single Piece, 2 Piece, 3 Piece, Blow out Proof Stem, Floating Ball, HL / ≥ 150 Gears Operated
Pr.Rating	ASME Class 125
Face to Face	ASME B 16.1
End Connection	Screwed	BSP
	Flanged	BS 10 Table D / E, Class 150, FF
Testing Std.	BS EN 12266-1 [BS 6755-1]

:: FORGED BALL VALVE ::

Valve Type	FORGED BALL VALVE - SE / SW
Design Std	BS EN ISO 17292 [BS 5351]
Size Range	10 DN to 50 DN [ 3/8” to 2”]
Body	ASTM A105 / ASTM A182 - F304 / F316
Trim	AISI 410 / 304 / 316
Seat	PTFE / RTFE / PEEK
Design Features	Reduced Bore / Full Bore, 3 Piece, Blow out Proof Stem,Floating Ball, HL Operated. .
Pr.Rating	ASME Class 800
End Connection	SCREWED	BSP / BSPT NPT : ASME B1.20.1 B1.20.1
	SOCKET WELD	ASME B16.11
Testing Std.	BS EN 12266 -1 [BS 6755-1] / API 598
Test Pressure	Seat	55 Kg/Sq.cm
Optional	Extended Stem, 3 way - L / T Port

:: CS / SS BALL VALVE - FLANGED ::

Valve Type	CS / SS BALL VALVE - FLANGED
Design Std	BS EN ISO 17292 [BS 5351] / API 6D / ASME B16.34 / [BS EN ISO 12516]
Size Range	15 DN to 250 DN [1/2” to 10”]
Body	[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
	[SS - ASTM A 351 Gr.CF3 / CF3M]
Trim	AISI 410 / 304 / 304L / 316 / 316L
Seat	PTFE / RTFE / PEEK
Design Features	Regular Bore - SP , Full Bore, 2 Piece / 3 Piece, Blow out Proof Stem, Floating Ball / ≥ 150 Trunnion Ball, ≥ 150HL / ≥ 150 Gear Operated.
Pr.Rating	ASME Class 150 / 300
Face to Face	ASME B 16.10 / EN 558 -1
End Connection	ASME B16.5, RF - CLASS 150 / 300
Testing Std.	BS EN 12266 - 1, 2 [BS 6755 -1, 2] API 598
Optional	2P BV - Fire safe [API 607 / BS EN ISO 10497] / Anti Static Device / Extended Stem / EN ISO 5211 - Mounting pad / Special Gland Packing / Jacketed provision / Special MOC

:: SS BALL VALVE ::

Valve Type	SS BALL VALVE - SE / SW / TC
Design Std	BS EN ISO 17292 [BS 5351]
Size Range	15 DN to 50 DN [1/2” to 2”]
Body	[SS - ASTM A 351 Gr.CF8 / CF8M] - SP / 3P
	[SS - ASTM A 351 Gr.CF3 / CF3M] - 3P
Trim	AISI 304 / 316 - SP / 3P - AISI 304L / 316L - 3P
Seat	PTFE / CFT / GFT / RPTFE / PEEK
Design Features	Full Bore, Single Piece / 3 Piece, Blow out Proof Stem, Floating Ball, HL Operated.
Pr.Rating	ASME Class 150 - SP /3P , Class 300 / 800 - 3P
End to End	ASME B 16.10 / EN 558 -1
End Connection	Screwed	BSP / BSPT NPT: ASME B1.20.1
	Socket Weld - 3P	ASME B16.11 Tri Clamp: ISO 2852
Testing Std.	BS EN 12266 - 1 (BS 6755) / API 598
Optional	Fire safe [API 607 / BS EN ISO 10497] / Anti Static Device / Extended Stem / EN ISO 5211 - Mounting pad / Special Gland Packing

:: CS / SS GLOBE VALVE ::

Valve Type	CS / SS GLOBE VALVE - FL / BW
Design Std	BS 1873 / DIN 3356 / API 600 / API 6D / ASME B16.34
Size Range	25 DN to 400 DN [1” to 16”]
Body	[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
Trim	AISI 410 / 304 / 316
Seat / Disc	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Bolted Bonnet, OS & YT, HW & Gear operated
Pr.Rating	[ASME - Class 150 / 300 / 600] [ DIN ND 40 ]
Face to Face	ASME B 16.10 / EN 558 -1 / API 6D
End Connection	Flanged	ASME B16.5, RF - CLASS 150 / 300 / 600 DIN 2545 - DIN ND 40
	Butt weld	ASME B16.25
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598
Optional	IBR / Soft Seat / Extended Bonnet for low Temp. / Lantern Ring / Indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Parabolic Plug, Regulating Plug, Guided Plug Design / RTJ Flanges / Special MOC / Higher Sizes

:: FORGED GLOBE VALVE - SE / SW / BW ::

Valve Type	BS EN ISO 15761 [BS 5352] / API 602 / ASME B 16.34
Size Range	15 DN to 50 DN [ 1/2” to 2”]
Body	[ASTM A 105 ] [ASTM A 182 - F 304 / F 316 / F 11 / F 22]
Trim	AISI 410 / 304 / 316
Seat / Disc	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Bolted Bonnet, OS & YT, HW operated
Pr.Rating	ASME Class 800
End Connection	SCREWED	BSP / BSPT	NPT	ASME B1.20.1
	SOCKET WELD	ASME B16.11	BUTT WELD	ASME B16.25
Testing Std.	BS EN 12266 -1 [BS 6755-1] / API 598
Options	Stellite Hard facing / Extended Bonnet

:: SS GATE VALVE ::

Valve Type	CS / SS GATE VALVE - FL / BW
Design Std	BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34
Size Range	40 DN to 400 DN [1 1/2” to 16”]
Body	[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
Trim	AISI 410 / 304 / 316
Seat / Wedge	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Bolted Bonnet, OS & YT, HW & Gear operated
Pr.Rating	ASME - Class 150 / 300 / 600
Face to Face	ASME B 16.10 / EN 558 -1 / API 6D
End Connection	Flanged	ASME B16.5, CLASS 150 / 300 / 600
	Butt weld	ASME B16.25
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598
Optional	IBR / Extended Bonnet for low Temp. / Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels

:: FORGED GATE VALVE ::

Valve Type	FORGED GATE VALVE - SE / SW / BW
Design Std	BS EN ISO 15761 [BS 5352] / API 602 / ASME B 16.34
Size Range	15 DN to 50 DN [ 1/2” to 2”]
Body	[ASTM A 105 ] [ASTM A 182 - F 304 / F 316 / F 11 / F 22]
Trim	AISI 410 / 304 / 316
Seat / Wedge	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Bolted Bonnet, OS & YT, Solid Gate, HW operated
Pr.Rating	ASME Class 800
End Connection	Screwed	ASME Class 800	NPT	ASME B1.20.1
	Socket Weld	ASME Class 800	Butt Weld	ASME B16.25
Testing Std.	BS EN 12266 -1 [BS 6755-1] / API 598
Optional	Stellite Hard facing, Extended Bonnet

:: NRV (LIFT CHECK VALVE) ::

Valve Type	CS / SS NRV [LIFT CHECK VALVE] - FL
Design Std	BS 1868 / DIN 3356 / API 600 / API 6D / ASME B16.34
Size Range	25 DN to 300 DN [1” to 12”]
Body	[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
Trim	AISI 410 / 304 / 316
Seat / DIsc	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Piston Lift up / Spring Loaded / Bolted Cover, Horizontal Mounting
Pr.Rating	[ASME - Class 150 / 300] [ DIN ND 40 ]
Face to Face	ASME B 16.10 / EN 558 -1 / API 6D
End Connection	[ ASME B16.5, RF - CLASS 150 / 300 ] [ DIN 2545 - DIN ND 40 ]
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598

:: NRV (CHECK VALVE) ::

Valve Type	SS NRV [CHECK VALVE] - SE - Universal Mounting CS / SS NRV [CHECK VALVE] - FL - Vertical Mounting
Design Std	ASME B 16.34
Size Range	Screwed	15 DN to 50 DN [ 1/2” to 2”]
	Flanged	15 DN to 100 DN [ 1/2” to 4”]
Body	AISI 304 /316 / SS - ASTM A 351 Gr.CF8 / CF8M
Trim	AISI 304 / 316
Seat / Disc	AISI 410 / 304 / 316
Design Features	Screwed	Spring Loaded, Guided Disc, SP / 3PDesign - Universal Mounting
	Flanged	Spring Loaded, Guided Disc, 2P / 3P Bolted Design - Vertical / Horizontal Mounting
Pr.Rating	ASME Class 150 / 300
End Connection	Screwed	BSP / BSPT NPT - ANSI B1.20.1
	Flanged	ASME B16.5, RF - CLASS 150 / 300
Testing Std.	BS EN 12266 -1 [BS 6755-1] / API 598
Optional	Soft seat, High Pressure media

:: NRC (CHECK VALVE) ::

Valve Type	CS / SS NRC [CHECK VALVE] - FLANGED
Design Std	BS 1868 / DIN 3356 / API 600 /
Size Range	25 DN to 300 DN [1” to 12”]
Body	[CS -ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
Trim	AISI 410 / 304 / 316
Seat / Disc	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Piston Lift up, Bolted Cover, Horizontal Mounting
Pr.Rating	[ASME - Class 150 / 300] [ DIN ND 40 ]
Face to Face	EN 558 -1 [ASME B 16.10] / API 6D
End Connection	[ ASME B16.5, RF - CLASS 150 / 300 ] [ DIN 2545 - DIN ND 40 ]
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598
Temp Range	CS: -29 to 427ºC / SS: -196 to 815 ºC
Test Pressure	RATING	CLASS 150	CLASS 300	DIN ND 40
	Body	30Kg/Sq.cm	77Kg/Sq.cm	60 Kg/Sq.cm
	Seat / Back Seat	24 Kg/Sq.cm	55 Kg/Sq.cm	40 Kg/Sq.cm

:: SWING CHECK VALVE ::

Valve Type	CS / SS SWING CHECK VALVE - FL / BW
Design Std	BS 1868 / API 600 / ASME B16.34
Size Range	40 DN to 400 DN [1 1/2” to 16”]
Body	[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
Trim	AISI 410 / 304 / 316
Seat / Disc	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Swing type, Bolted Cover, Gravitational Disc, Horizontal / Vertical Mounting
Pr.Rating	ASME - Class 150 / 300 / 600
Face to Face	ASME B 16.10 / EN 558 -1 / API 6D
End Connection	Flanged	ASME B16.5, RF - CLASS 150 / 300 / 600
	Butt Weld	ASME B16.25
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598
Optional	Soft Seat / Renewable Seat / Stellite Hard facing / Dead weight Non Slam / RTJ Flanges / By Pass arrangement / Special MOC: Austenitic and Duplex Stainless Steels

:: WAFER CHECK VALVE ::

Valve Type	CI / CS / SS WAFER CHECK VALVE
Design Std	API 598 / API 6D
Size Range	25 DN to 600 DN [1” to 24”]
Body	[SS - AISI 304 / 316] [CI- IS 210 Gr. FG 200 / ASTM A 126 Gr. B] [CS - ASTM A 216 Gr. WCB]
Disc	AISI 410 / 304 / 316
Seat	NITRIL / EPDM / NEOPRENE / PTFE / SILICON
Design Features	Single Plate, Swing type, Self acting , Wafer type, Face Sealing - O ring, Horizontal / Vertical Mounting
Pr.Rating	[PN 10 / PN 16] [ASME - Class 150 / 300 / 600]
Face to Face	API 6D
End Connection	Sand witched Between Flanges: [BS 10 Table D / E ] [ DIN 2542 - PN 10 / DIN 2543 - PN 16] [ ASME B16.5, - CLASS 150 / 300 / 600 ]
Testing Std.	API 598
Optional	Spring Loaded , Small / Large Groove facing

:: NON SLAM CHECK VALVE (DCV) ::

Valve Type	SS NON SLAM CHECK VALVE [DCV] - WAFER END
Design Std	BS 7438 / EN 558 - 1
Size Range	15 DN to 200 DN [1/2” to 8”]
Body	SS - ASTM A 351 Gr.CF8 / CF8M
Seat	Metal to Metal - AISI 304 / 316
Disc	AISI 304 / 316
Design Features	Single disc, Spring loaded type, Self Centering Disc, Universal Mounting, Compact Wafer End Design
Pr.Rating	ASME - Class 150 / 300
Face to Face	API 598 / DIN 3230
End Connection	Sand witched Between Flanges ASME B16.5, - CLASS 150 / 300
Testing Std.	API 598
Optional	Soft Seat for zero leakage , Face Sealing , Vacuum use / Vacuum Breaker

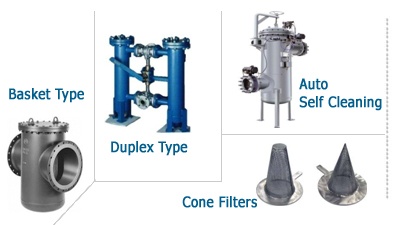

:: Y - STRAINERS ::

Valve Type

CI / CS / SS Y Type - STRAINERS - SE / FL
CS / SS - T Type - STRAINER
CS/SS - Basket : Simplex / Duplex Strainer / Self Cleaning Strainer

Design Std

CVPL Std. / ASME B16.34

Size Range

Screwed	15 DN to 50 DN [1/2” to 2”] – Y Type
Flanged	25 DN to 600 DN [1” to 24”]

Body

[CI - IS 210 Gr. FG 200 / ASTM A 126 Gr. B] [CS /ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]

Screen

SS 304 / SS 316 - Perforated Screen 40 / 60 /100 Mesh

Design Features

Y - Type, Screwed on Cover / Bolted Cover

Pr.Rating

[ PN 10 / PN 16 / PN 40 ] [ ASME Class 150 / 300 / 600 ]

Face to Face

EN 558 -1 [ASME B 16.10] / API 6D

End Connection

Screwed	BSP / BSPT NPT : ANSI B1.20.1
Flanged	[BS 10 Table D / E] [ DIN 2542 - PN 10 / DIN 2543 - PN 16] Class 150, FF - for CI Strainers
Flanged	DIN 2545 [DIN ND 40] / ASME B16.5, RF Class 150 / 300 / 600 for CS/SS Strainers

Optional

Higher Sizes / Fabricated Strainer / Drain & Flush plug / on demand Mesh / Temporary Strainers

:: BUTTERFLY VALVE ::

Valve Type	CI / CS / SS BUTTERFLY VALVE
Design Std	BS EN 593 / ISO 10631 / API 609
Size Range	40 DN to 600 DN [1 1/2” to 24”
Body	[CI IS 210 Gr. FG 200 / ASTM A 126 Gr. B] [CS /ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
Disc	CI ASTM A 126 Gr. B / Ductile Iron / SS - ASTM A 351 Gr.CF8 / CF8M]
Shaft	AISI 410 / 304 /316
Seat	NITRIL / EPDM / PTFE
Design Features	Centric Disc, Lined Body, Sure Seal, Compact, Wafer End , Top Flange - ISO 5211
Pr.Rating	[PN 10 / PN 16] [ASME - Class 150]
Face to Face	ISO 5752 / API 609
End Connection	Sand witched Between Flanges: [BS 10 Table D / E ] [ DIN 2542 - PN 10 / DIN 2543 - PN 16] [ ASME B16.5, - CLASS 150 ]
Testing Std.	BS EN 12266 - 1 / API 598
Optional	Double Flange / Lug Type / Off set Disc / Replaceable Seat / Damper BFV / Higher sizes /

:: NEEDLE VALVES ::

Valve Type	SS NEEDLE VALVES - SE / SW
Design Std	BS 5352 / CVPL Std.
Size Range	6 DN to 50 DN [1/4” to 2”]
Body	AISI 304 / 316
Trim	AISI 304 / 316
Design Features	Screwed Bonnet, Integral Bonnet / Straight / Angle pattern / Cone disc,
Pr.Rating	1000 / 3000 / 5000 / 10000 PSI
End Connection	[Direct tube ends with Nut & Ferrule] [Screwed BSP / BSPT / NPT] [Tube Socket Weld end]
Optional	Manifold Valves , High Temp Service, Integral Bonnet, Male / Female Thread / Panel Mounting

:: FORGED NRV - SE / SW / BW ::

Valve Type	FORGED NRV - SE / SW / BW
Design Std.	BS EN ISO 15761 [BS 5352] / API 602 / ASME B 16.34 / MSS SP 118
Size Range	15 DN to 50 DN [ 1/2” to 2”]
Body	[ASTM A 105 ] [ASTM A 182 - F 304 / F 316 / F 11 / F 22]
Trim	AISI 410 / 304 / 316
Seat / Disc	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Bolted Cover, Piston Lift up , Spring Loaded
Pr. Rating	ASME Class 800
End Connection	Screwed :	BSP / BSPT	NPT :	ASME B1.20.1
	Socket Weld :	ASME B16.11	Butt Weld :	ASME B16.25
Testing Std	BS EN 12266 -1 [BS 6755-1] / API 598
Optional	Stellite Hard facing

:: ELECTRICAL ACTUATED BALL VALVE ::

Valve Type	BALL VALVE	Electric Actuator Details
Design Std.	BS EN ISO 17292 [BS 5351] / API 6D / ASME B16.34 / [BS EN ISO 12516]	Actuator Motion [Actuation]	Rotary Motion: On - Off Type Modulating Control [Positioner] Signal Input : 4 ̴ 20mA/1 – 5V DC / 0 ̴ 10V DC
SizeRange	15 DN to 250 DN [1/2” to 10”]
Body	CS - ASTM A 216 Gr. WCB SS - ASTM A 351 Gr.CF8 / CF8M SS - ASTM A 351 Gr.CF3 / CF3M
Trim	AISI 410 / 304 / 304L / 316 / 316L
Seat	PTFE / RTFE / PEEK	Power Supply	24V DC Single Phase: 110 / 220V AC 3 Phase : 220 / 380 / 440V AC Rotary
Design Features	Full Bore, 2 / 3 Piece, Blow out Proof Stem, Floating Ball, Trunnion Ball, Pneumatic Actuator.	Enclosure	IP 67 – Water & Dust Proof
Pr. Rating	ASME Class 150 / 300	Manual Overdrive	Hand Wheel with switchable declutch able lever
Face to Face	ASME B 16.10 / EN 558 -1	Motor protection Custom Fit Accessories	Thermal Protection - Class F Remote position Control: 4-20mA input/output Potentiometer: 0 -1 Kohm Feedback Current Transmitter: 4-20mA output Additional Limit Switches - 2 Nos Torque Switches
End Connection	Flanged : ASME B16.5, RF - CLASS 150 / 300 Screwed: BSP / BSPT / NPT Socket Weld / Tri Clamp
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598
Temp. Range	-20 to 260ºC

Testing Std.

Fire safe [API 607 / BS EN ISO 10497] / Anti Static Device / Extended Stem / Special Gland Packing / Jacketed provision / Special MOC

:: PNEUMATIC ACTUATED BALL VALVE ::

Valve Type	BALL VALVE	PNEUMATIC ACTUATOR DETAILS
Design Std.	BS EN ISO 17292 [BS 5351] / API 6D / ASME B16.34 / [BS EN ISO 12516]	Actuator :	Pneumatic - Single / Double Acting Rotary
Size Range	15 DN to 250 DN [1/2” to 10”]
Body	CS - ASTM A 216 Gr. WCB SS - ASTM A 351 Gr.CF8 / CF8M SS - ASTM A 351 Gr.CF3 / CF3M
Trim	AISI 410 / 304 / 304L / 316 / 316L	Motion [Actuation]	Rotary Motion: On - Off Type Modulating Control [Positioner] Signal Input : 4 ̴ 20mA DC /1 – 5V DC / 0 ̴ 10V DC
Seat	PTFE / RTFE / PEEK
Design Features	Full Bore, 2 / 3 Piece, Blow out Proof Stem, Floating Ball, Trunnion Ball, Pneumatic Actuator
Pr. Rating	ASME Class 150 / 300
Face to Face	ASME B 16.10 / EN 558 -1	Custom Fit Accessories	5/2 , 3/2 - Namur Solenoid Valve with Different Voltage Coil ON-Off Position indicator with micro switch Limit Switches Electro Pneumatic Valve Positioner Pneu. Pneu. Valve Positioner I/P Convertor Air Filter Regulator Volume Booster Lock up Valve Manual overdrive
End Connection	Screwed: BSP / BSPT / NPT Socket Weld / Tri Clamp Flanged : ASME B16.5, RF - CLASS 150 / 300
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598
Optional	Fire safe [API 607 / BS EN ISO 10497] / Anti Static Device / Extended Stem / Special Gland Packing / Jacketed provision / Special MOC

:: PNEUMATIC ACTUATED BUTTERFLY VALVE ::

Valve Type	BUTTERFLY VALVE	PNEUMATIC ACTUATOR DETAILS
Design Std.	BS EN 593 / ISO 10631 / API 609	ACTUATOR	Pneumatic - Single / Double Acting – Quarter Turn Actuator
Size Range	40 DN to 600 DN [1 1/2” to 24”]	ACTUATOR	Pneumatic - Single / Double Acting – Quarter Turn Actuator
Body	[CI IS 210 Gr. FG 200 / ASTM A 126 Gr. B] CS /ASTM A 216 Gr. WCB SS - ASTM A 351 Gr.CF8 / CF8M	Motion [Actuation] Options	Rotary Motion: On - Off Type Modulating Control [Positioner] Signal Input : 4 ̴ 20mA/1 – 5V DC / 0 ̴ 10V DC
Disc	CI ASTM A 126 Gr. B / Ductile Iron SS - ASTM A 351 Gr.CF8 / CF8M]	Custom Fit Accessories	5/2 , 3/2 - Namur Solenoid Valve with different Voltage Coil ON-Off Position indicator with Micro Limit Switches Electro Pneumatic Valve Positioner Pneu. Pneu. Valve Positioner I/P Convertor Air Filter Regulator Volume Booster Lock up Valve Manual overdrive
Shaft	AISI 410 / 304 /316
Seat	NITRIL / EPDM / PTFE
Design Features	Centric Disc, Lined Body, Sure Seal, Compact, Wafer End , Top Flange - ISO 5211
Pr. Rating	[PN 10 / PN 16] [ASME - Class 150]
Face to Face	ISO 5752 / API 609
End Connection	S Sand witched Between Flanges: [BS 10 Table D / E ] [ DIN 2542 - PN 10 / DIN 2543 - PN 16] [ ASME B16.5, - CLASS 150 ]
Testing Std.	BS EN 12266 - 1 / API 598
Optional	Double Flange / Lug Type / Off set Disc / Replaceable Seat / Damper BFV / Higher sizes

:: ELECTRICAL ACTUATED BUTTERFLY VALVE ::

Valve Type	BUTTERFLY VALVE with Pneumatic Actuator	ELECTRICAL ACTUATOR DETAILS
Design Std.	BS EN 593 / ISO 10631 / API 609	ACTUATOR	Rotary Motion: On - Off Type Modulating Control [Positioner] Signal Input : 4 ̴ 20mA/1 – 5V DC / 0 ̴ 10V DC
Size Range	40 DN to 600 DN [1 1/2” to 24”]
Body Disc	[CI IS 210 Gr. FG 200 / ASTM A 126 Gr. B] CS /ASTM A 216 Gr. WCB SS - ASTM A 351 Gr.CF8 / CF8M CI ASTM A 126 Gr. B / Ductile Iron / SS - ASTM A 351 Gr.CF8 / CF8M]	Motion [Actuation]	24V DC Single Phase: 110 / 220V AC 3 Phase : 220 / 380 / 440V AC
		Enclosure	IP 67 – Water & Dust Proof
Shaft Seat	AISI 410 / 304 /316 NITRIL / EPDM / PTFE	Manual Overdrive	Hand Wheel with switchable declutch able lever
		Motor protection	Thermal Protection - Class F
Design Features	Centric Disc, Lined Body, Sure Seal, Compact, Wafer End , Top Flange - ISO 5211	Custom Fit Accessories	Remote position Control: 4-20mA input/output Potentiometer: 0 -1 Kohm Feedback Current Transmitter: 4-20mA output Limit Switches - 2 Nos Torque Switches
Pr. Rating	[PN 10 / PN 16] [ASME - Class 150]
Face to Face	ISO 5752 / API 609
End Connection	Sand witched Between Flanges: [BS 10 Table D / E ] [ DIN 2542 - PN 10 / DIN 2543 - PN 16] [ ASME B16.5, - CLASS 150 ]
Testing Std.	BS EN 12266 - 1 / API 598
Optional	Double Flange / Lug Type / Off set Disc / Replaceable Seat / Damper BFV / Higher sizes

:: PNEUMATIC CYLINDER PISTON ACTUATED GATE VALVE ::

		PNEUMATIC CYLINDER OPERATED
Design Std.	BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603 / ASME B16.34	Actuator	Pneumatic - Single / Double Acting Cylinder Operated
Size Range	40 DN to 400 DN [1 1/2” to 16”]	Motion [Actuation]	Linear Motion: On - Off Type
Body	CS - ASTM A 216 Gr. WCB SS - ASTM A 351 Gr.CF8 / CF8M	Motion [Actuation]	Linear Motion: On - Off Type
Trim	AISI 410 / 304 / 316	Custom Fit Accessories	3/2, 5/2 Solenoid Valve with different Voltage Coil, Air Filter Regulator Volume Booster Lock up Valve Manual overdrive
Seat / Wedge	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Bolted Bonnet & YT, Pneumatic Cylinder Operated
Pr. Rating	ASME - Class 150 / 300 / 600
Face to Face	EN 558 -1 [ASME B 16.10] / API 6D
End Connection	Flanged : ASME B16.5 - CLASS 150 / 300 / 600 Flanged : ASME B16.25
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598

:: PNEUMATIC DIAPHRAGM OPERATED 2 / 3 Way GLOBE CONTROL VALVE ::

		PNEUMATIC DIAPHRAGM OPERATED
Design Std.	ASME 16.34	Actuator	Single Acting - Diaphragm Actuator Equipped with Multi Spring Operated. Compact & Great output force
Size Range	25 DN to 250 DN [1” to 10”]
Body/ Bonnet / Bottom Piece	CS -ASTM A 216 Gr. WCB SS - ASTM A 351 Gr.CF8 / CF8M	Motion [Actuation]	Linear Motion : Direct / Reverse action - On - Off Type Modulating Control [Positioner] Signal Input : 4 ̴ 20mA/1 – 5V DC / 0 ̴ 10V DC
Trim	AISI 410 / 304 / 316
Packing	V - Teflon / Graphite
Design Features	Bolted Bonnet & Extended with Fins Type, Cage Guided, Pr. Balanced, Contoured Plug / Single Seated - 2way / Double Seated - 3 Way	Custom Fit Accessories	3/2 - Solenoid Valve with Different Voltage Coil Electro - Pneumatic Rotary Valve Positioner Pneu. - Pneumatic Rotary Valve Positioner Air Filter Regulator Volume Booster Lock up Valve Manual overdrive
Pr. Rating	[ASME - Class 150 / 300]
Face to Face	[ASME B 16.10] EN 558 -1
End Connection	[ ASME B16.5, RF - CLASS 150 / 300 ]
Testing Std.	ASME B16.104 / FCI 70-2
Seat Leakage	ASME B16.104 CL - IV [Metal to Metal Seating] ASME B16.104 CL - VI [Soft Seat]
Valve Optional	2 Way / 3Way - Globe Control Valve - Diaphragm Operated 2 Way / 3Way - Globe Control Valve - Pneumatic Cylinder Operated 2 Way - Diaphragm Control Valve - Diaphragm Operated
3 Way CV Application	Can be divided into two types by function : Mixing Type : Mixing Two Flow into one Diverting Type: Diverting one flow into two

:: ELECTRICAL ACTUATOR OPERATED 2 / 3 Way GLOBE CONTROL VALVE ::

Valve Type

2 / 3 Way GLOBE CONTROL VALVE

ELECTRICAL ACTUATOR OPERATED

Design Std.

IS 10189 - Part 1

Actuator
Motion [Actuation]

Linear Motion: On - Off Type
Modulating Control [Positioner]
Input/output: 4 ̴ 20mA/ 0 ̴ 10V DC

Size Range

25 DN to 250 DN [1” to 10”]

Body/ Bonnet / Bottom Piece

[CS -ASTM A 216 Gr. WCB]
[SS - ASTM A 351 Gr.CF8 / CF8M]

Power Supply

Single Phase: 110 / 220V AC 24V DC
3 Phase : 220 / 380 / 440V AC

Trim

AISI 410 / 304 / 316

Enclosure

IP 67 – Water & Dust Proof

Packing

V - Teflon / Graphite

Design Features

Bolted Bonnet & Extended with Fins Type, Cage
Guided, Pr. Balanced, Contoured Plug /
Single Seated - 2way / Double Seated - 3 Way

Manual Overdrive

Position Indicator

Motor protection

Hand Wheel with switchable declutch able lever

Continues position indicator Provided

Thermal Protection - Class F

Pr. Rating

[ASME - Class 150 / 300]

Face to Face

EN 558 -1 [ASME B 16.10]

Custom Fit
Accessories

Remote position Control: 4-20mA input/output
Potentiometer: 0 -1 Kohm Feedback
Current Transmitter: 4-20mA output
Additional Limit Switches - 2 Nos

End Connection

[ ASME B16.5, RF - CLASS 150 / 300 ]

Testing Std.

ASME B16.104 / FCI 70-2

Seat Leakage

ASME B16.104 CL - IV [for Metal to Metal Seating]
ASME B16.104 CL - VI [Soft Seat]

Valve

Optional

2 Way - Globe Control Electric Actuated
3 Way - Globe Control Electric Actuated

3 Way CV Application

Can be divided into two types by function :
Mixing Type: Mixing Two Flow into one Diverting Type: Diverting one flow into two

:: ANGLE SEAT VALVE [ Y - Type Control Valve] ::

VALVE SPECIFICATIONS
Size Range	15 DN to 50 DN [ 1/2” to 2”]
Body	ASTM A 351 Gr. CF8 / CF8M
Trim	AISI 304 / 316
Seat	PTFE / RTFE
Design Features	Piston/Direct –Reverse action, self adjusting, spring loading, Teflon packing. On Off Type / NO, NC / Single Acting & Double Acting / Any Position, Soft Seated.
Pr. Rating	ASME Class 300
Leakage	ASME B16.104 - Class VI - Soft Seat
End Connection	SCREWED	BSP / BSPT - BS 21 NPT : ASME B1.20.1
	SOCKET WELD	ASME B16.11 TRI CLAMP: ISO 2852
	FLANGED	ASME B16.5 - Class 150
Operating Pr.	0 - 16 Bar
Operating Temp	-10 to 200◦C
Application	Water, Air, Oil, Steam, Liquid, Natural Gas, Vacuum , Slight Corrosive Gas & Liquid

:: Special Valve ::

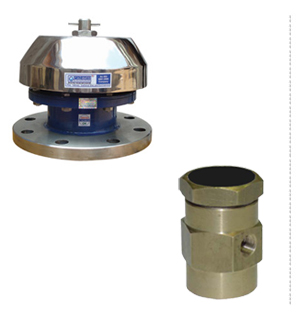

BREATHER VALVE

General Specification:

Caliber - Carbon Steel / Stainless Steel Body and Housing stand alone and all internals are AISI 304/316, Co-axial type Breather valve with bias spring settings for pressure relief device with integral Flame arrester construction and with manual testing provision and relieving provision and external sand and dust protection suitable for outdoor installations. End connection - Flanged and drilled to ANSI 16.5, Class 150.

Breather valves are having the combination of following features. Please furnish your requirement.

Pressure Relief valve
Vacuum Breaker
Flame Arrester
Desiccators

VALVE SPECIFICATIONS
Design Std.	CVPL 01
Size	25 to 200 mm (1” to 8”) - Flanged 25 to 50 mm (1” to 2”) - Screwed
Material	Carbon steel / AISI 304 / 316
Pressure Rating	Class 150 / 300
End Connections	Screwed - ASME B 1.20.1 / BS 21 Flanged - ASME B 16.5
Testing	BS 6755 Part 1

.....................................................................................................................................................................................................................................................

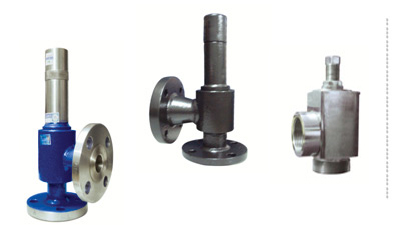

SAFETY RELIEF VALVE

‘Caliber Valves Pvt Ltd’ CS / SS Safety Relief Valve Full lift Spring Loaded Angle Type, Open / Enclosed Discharge.

VALVE SPECIFICATIONS
Material	Carbon Steel / AISI 304 / 316
Size	15 to 50 mm (1/2” to 2”) - Screwed 15 to 100 mm (1/2” to 4”) - Flanged
End Connection	Screwed - BSP / BSPT / NPT Flanged - ASME B 16.5
Spring	Spring Steel / SS 304
Set Pr. Range	0.35 to 17.5 Bar
Operating Temp	-196 to 210ºC

STRAINERS

Y - STRAINER / T - STRAINER
SIMPLEX / DUPLEX - BASKET STRAINER
TEMPORARY STRAINER
SELF CLEANINGFILTER / STRAINERS
CUSTOMIZED STRAINER – ANY TYPE / ANY SIZE

MATERIAL : CI / CS / SS 304 / SS 316 / ALLOY STEEL
SIZE : ½” TO 24” / DN 15 TO DN 600
RATING : CLASS 125 / 150 / 300 / 600
